Buildfix team performing GeoPoly™ resin injection underpinning on a Sydney home with foundation subsidence

Solutions

Underpinning Sydney

No-dig underpinning that lifts your Sydney home back towards level — without weeks of trenches, mass concrete, or moving out.

  • Free assessment · 1–2 day repair · 20-year warranty
  • Structural Engineers · Licensed Builders · Skilled Technicians
Trustpilot
Google

Underpinning your Sydney home — without rebuilding it

Underpinning strengthens the foundations beneath a home so they can carry the structure above. More importantly, it stops subsidence — the ground giving way under your home — before it does more damage to the walls, floors and frame.

Traditional mass concrete underpinning works. It's a real engineering solution. But it's expensive, disruptive, and most Sydney homeowners aren't told there's a non-invasive alternative that does the same job in a fraction of the time.

GeoPoly™ resin injection is what Buildfix uses to underpin Sydney homes. Coin-sized holes, no digging, the foundation lifted back towards level in a day or two. The family stays in the house. The garden stays intact. The wall cracks start closing as the foundation settles.

Why Sydney homes sink

Sydney sits on more soil types than almost any other Australian city — reactive clays across the Northern Beaches, Inner West and Western Sydney; sandy non-cohesive soils through the Eastern Suburbs; sandstone bedrock in parts of the North Shore. The cause of subsidence is different in each area, and the right fix follows the cause.

The single most common pattern across Sydney is reactive clay shrinking in a long dry summer, then expanding when the autumn rain arrives. Older homes with shallow brick or stone footings — common in the Inner West and across the Northern Beaches — feel that movement first. A leaking stormwater pipe, a thirsty tree close to the footing, or a disconnected downpipe washing water against the wall will speed it all up.

The traditional ways of underpinning sydney a home

Sydney's soil changes from suburb to suburb. So does the cause of subsidence — and the right way to fix it.

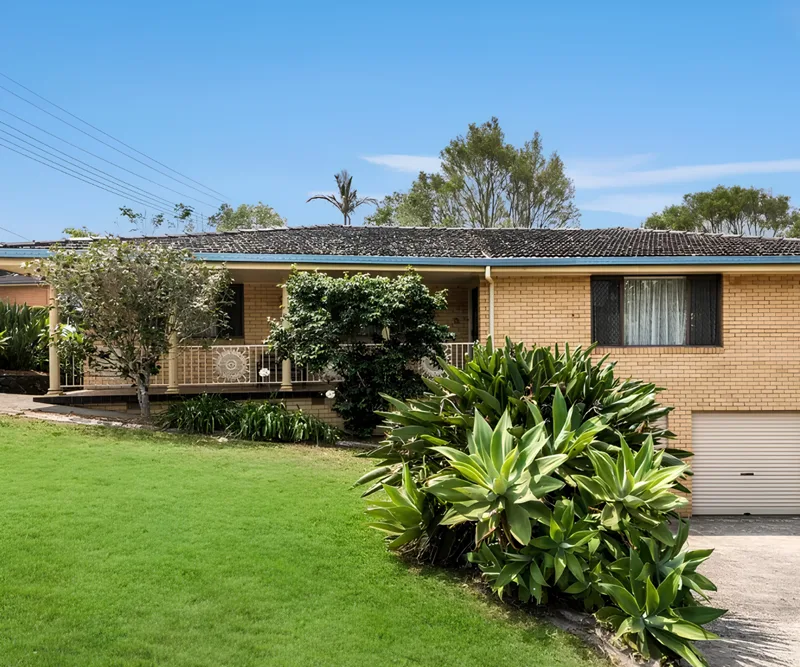

Sydney Northern Beaches home on reactive clay soil showing foundation subsidence

Northern Beaches

Moderate-to-highly reactive clays move with the seasons. Older homes on shallow footings — common across Manly, Dee Why and Mona Vale — feel the movement first. Tree roots and broken clay pipes accelerate it.

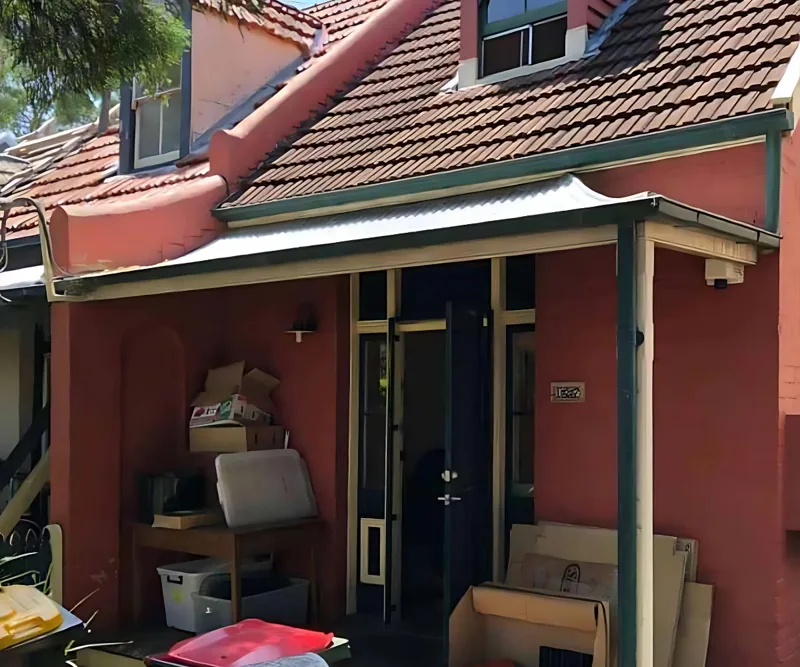

Sydney Inner West heritage terrace with shallow brick footings showing wall cracks

Inner West

Heritage terraces from Newtown to Annandale sit on moderately reactive clay with shallow brick or stone footings. Original mortar is brittle. Traditional underpinning isn't always suited — these foundations need a lighter, non-invasive lift.

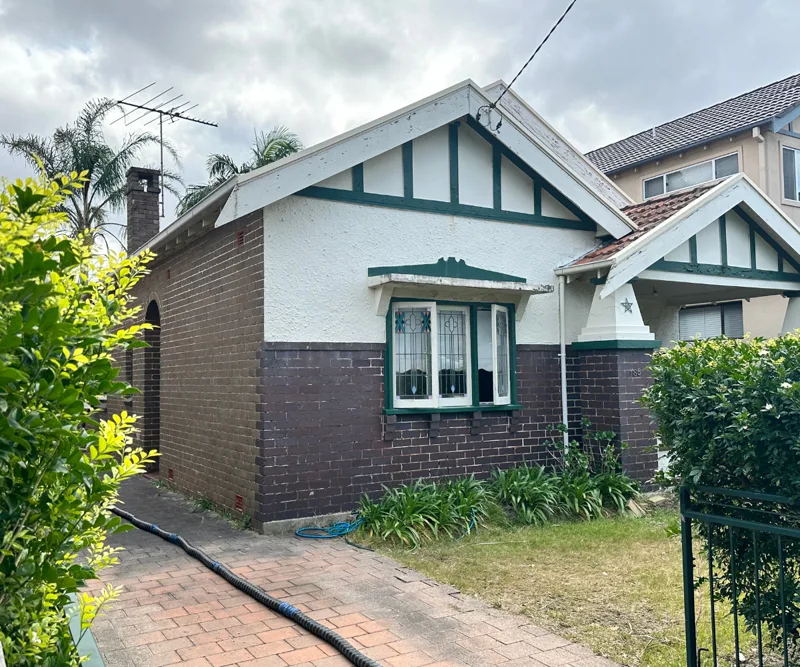

Sydney Eastern Suburbs home on sandy non-cohesive soil affected by foundation erosion

Eastern Suburbs

Sandy, non-cohesive soils make erosion the persistent problem here. Even a neighbouring renovation can disturb the ground enough to crack a wall. Permeation grouting often precedes the GeoPoly™ lift in Bondi, Bronte and Coogee.

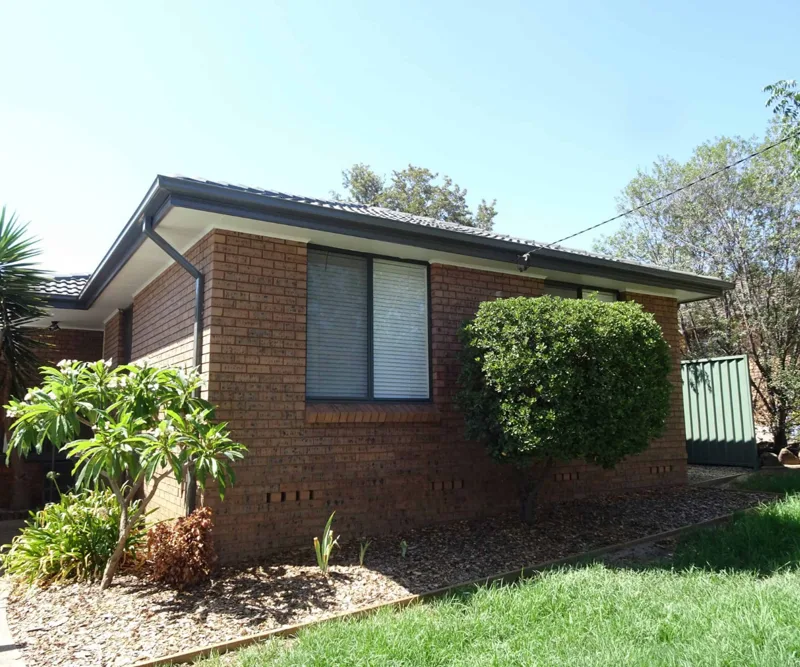

Western Sydney brick home on reactive clay showing stepped wall crack from foundation subsidence

Western Sydney

Reactive clays across Parramatta, Penrith and Liverpool expand and contract dramatically through drought-flood cycles. Surface water pooling against the slab is a leading cause — drainage gets fixed alongside the foundation.

Where Sydney homes sink — and why

Our Sydney underpinning method — GeoPoly™ resin injection

GeoPoly™

Resin Injection Underpinning

GeoPoly™ is Buildfix's proprietary geopolymer resin. Injected beneath the footings through coin-sized holes, it compacts loose soil, fills voids, and lifts the foundation back towards level. No digging. No mass concrete. No weeks of disruption.

The lift is monitored in real time on a laser level — every millimetre of movement is watched as the resin expands beneath the foundation. Most Sydney homes are stabilised in 1–2 days, and the family stays in the house the entire time.

GeoPoly™ has stabilised more than 15,000 homes and structures. It's particularly effective on Sydney's reactive clays — the resin compacts the soil and reduces its moisture-absorption capacity, so the seasonal shrink-swell that caused the subsidence in the first place is calmed at the source.

Want to know if GeoPoly™ is the right fix for your Sydney home? Book a free on-site assessment. A structural engineer comes from our Seven Hills office, maps the floor levels with a laser, identifies the cause, and gives you a fixed-price quote on the spot.

Compare with traditional

What to expect

How underpinning your Sydney home actually works.

Structural engineer assessing a Sydney home for underpinningStep 1

Free On-Site Assessment

A structural engineer comes to your Sydney home from our office at 167 Prospect Highway, Seven Hills. Floor levels are mapped with a laser, the cause of the movement is identified, and the repair plan is designed. Takes 30–60 minutes. Free.

Buildfix fixed-price quote for Sydney underpinningStep 2

Fixed-Price Quote

After the assessment, you receive a fixed-price quote on the spot. The price you see is the price you pay. No allowances, no per-kilo charges, no surprises mid-job.

GeoPoly™ resin being injected through coin-sized holes beneath a Sydney foundationStep 3

GeoPoly™ Resin Injection

Small coin-sized holes are drilled into the slab or near the footings. GeoPoly™ resin is injected beneath the foundation through the holes. The resin expands under pressure, fills voids, and compacts the soil.

Laser level monitoring foundation lift on a Sydney underpinning jobStep 4

Real-Time Laser Monitoring

As the resin lifts the foundation, every millimetre is watched on a laser level. The injection is paused, adjusted, and resumed as the readings dictate — until the foundation is back at its target level.

Final laser verification after Sydney foundation liftStep 5

Verify and Finish

Once the laser readings confirm the lift, the injection holes are patched flush. The resin reaches 95% strength within ten minutes. The slab is back in use the same afternoon.

20-year product and workmanship warranty on Sydney underpinning by BuildfixStep 6

20-Year Warranty

Every Buildfix underpinning job is backed by a 20-year product and workmanship warranty. If the foundation issue returns, so do we.

See the difference

Sydney homes before and after GeoPoly™ underpinning.

Press the image for a closer look.

Stepped crack in a Sydney brick wall before Buildfix underpinning
Sydney foundation lifted and stabilised after GeoPoly™ underpinning
Sunken floor returned to level after Sydney foundation repair
Sydney Inner West terrace before and after non-invasive underpinning
Sydney driveway crack closed after Buildfix underpinning job
Sydney Northern Beaches home foundation stabilised by GeoPoly™
Doorway returning to plumb after Sydney foundation lift
External wall crack closing after Buildfix Sydney underpinning

Instant results.
Guaranteed to last.

Why Sydney homeowners choose Buildfix to underpin their home.

Most Sydney underpinning jobs are completed in one or two working days. No weeks of trenches, no concrete trucks blocking your street, no need to move out.

Buildfix completing Sydney underpinning in 1–2 days

Real homes. Real results.

Real Sydney underpinning jobs by Buildfix.

1920s Apartment Stabilised After Light RailStrata

Kensington, NSW

1920s Apartment Stabilised After Light Rail

Light Rail construction shook a century-old apartment block to its foundations. GeoPoly™ stabilised six residences at a fraction of underpinning costs — residents never had to leave.

Read case study
Heritage Home Repaired Twice, Same TeamHomeowner

Strathfield, NSW

Heritage Home Repaired Twice, Same Team

When new cracks appeared in this 150-year-old Strathfield home, the owner didn’t hesitate — they called Buildfix again. Buildfix had already fixed the front of the house years earlier. This time, the team tackled the rear.

Read case study
Flood-Damaged Foundation Fixed in a DayHomeowner

Kingsgrove, NSW

Flood-Damaged Foundation Fixed in a Day

Surface water eroded the foundation and shifted a wall outward. GeoPoly™ filled the voids, raised the wall 20mm, and realigned the brickwork — all in one day.

Read case study
Auction-Ready After a 25mm Foundation LiftHomeowner

Murrumbateman, NSW

Auction-Ready After a 25mm Foundation Lift

Significant cracks and rotating walls threatened to derail an auction. GeoPoly™ lifted the foundation 25mm and closed the cracks in a single day — making the home auction-ready.

Read case study
Brick Veranda Realigned to Save the RoofHomeowner

Mays Hill, NSW

Brick Veranda Realigned to Save the Roof

A veranda pulling away from the house, columns rotating, and a roof at genuine risk of collapse. Foundation stabilisation and HelicalBar™ repair resolved everything in a day.

Read case study
1920s Apartment Stabilised — No EvacuationStrata

Sydney, NSW

1920s Apartment Stabilised — No Evacuation

A 1920s six-unit apartment block with growing wall cracks from subsidence. GeoPoly™ injection and structural steel rods stabilised the building while residents stayed in their homes.

Read case study
Meriton Apartments Re-LevelledStrata

Ashfield, NSW

Meriton Apartments Re-Levelled

A 40-year-old Meriton apartment complex with 12 apartments suffering uneven floors from sinking brick piers. GeoPoly™ re-levelled all piers in under a day, saving over $300,000 versus traditional rebuild.

Read case study
Sinking Piers and Verandah RescuedHomeowner

Pennant Hills, NSW

Sinking Piers and Verandah Rescued

Emergency repair of sinking brick piers on a 1930s villa in Pennant Hills. GeoPoly™ injection stabilised the verandah and prevented roof collapse — completed in a single day.

Read case study
All of the Buildfix team have been easy to communicate with. Everyone was punctual and communicated arrival times well ahead of arrival.

Scott HolmesMelbourne, VIC

Questions?

Our team is here to answer any questions you may have Monday – Friday 8am to 5pm AEST. Give us a call on 1300 854 115.

Buildfix structural engineer assessing a Sydney home for underpinning

Sinking home in Sydney?

Get your foundation checked out. Takes 30–60 minutes. The levels are mapped, the cause identified, and you'll have a fixed-price quote on the spot. It's free.

Structural Engineers · Licensed Builders · Skilled Technicians
