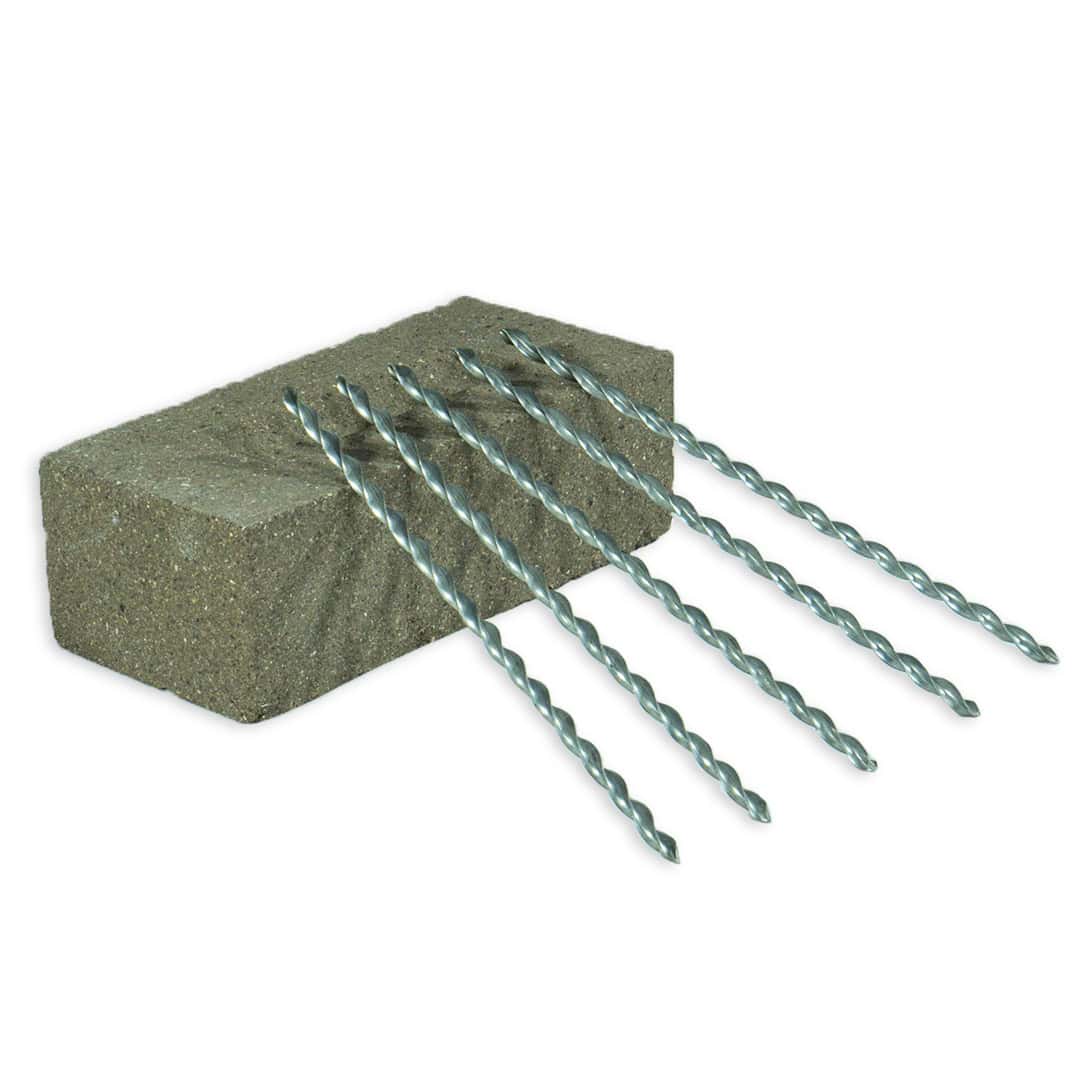

HelicalBar™ T316 - Engineered Technology for Structural Stability in Masonry Walls

HelicalBar™ T316 - Engineered Technology for Structural Stability in Masonry Walls

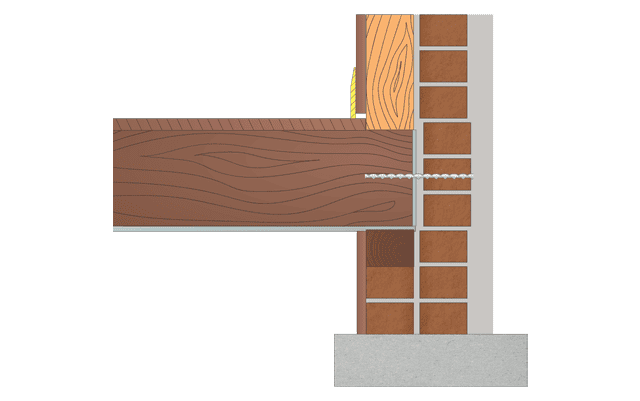

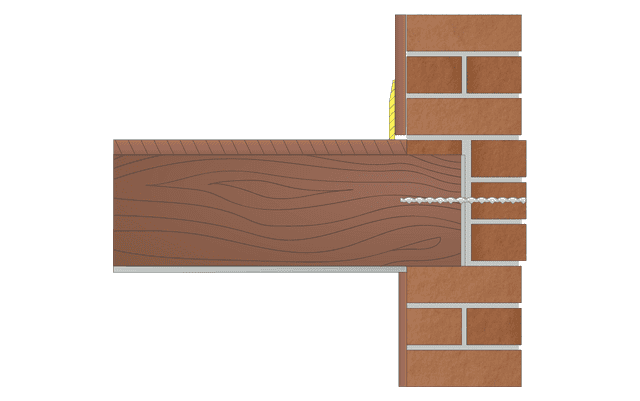

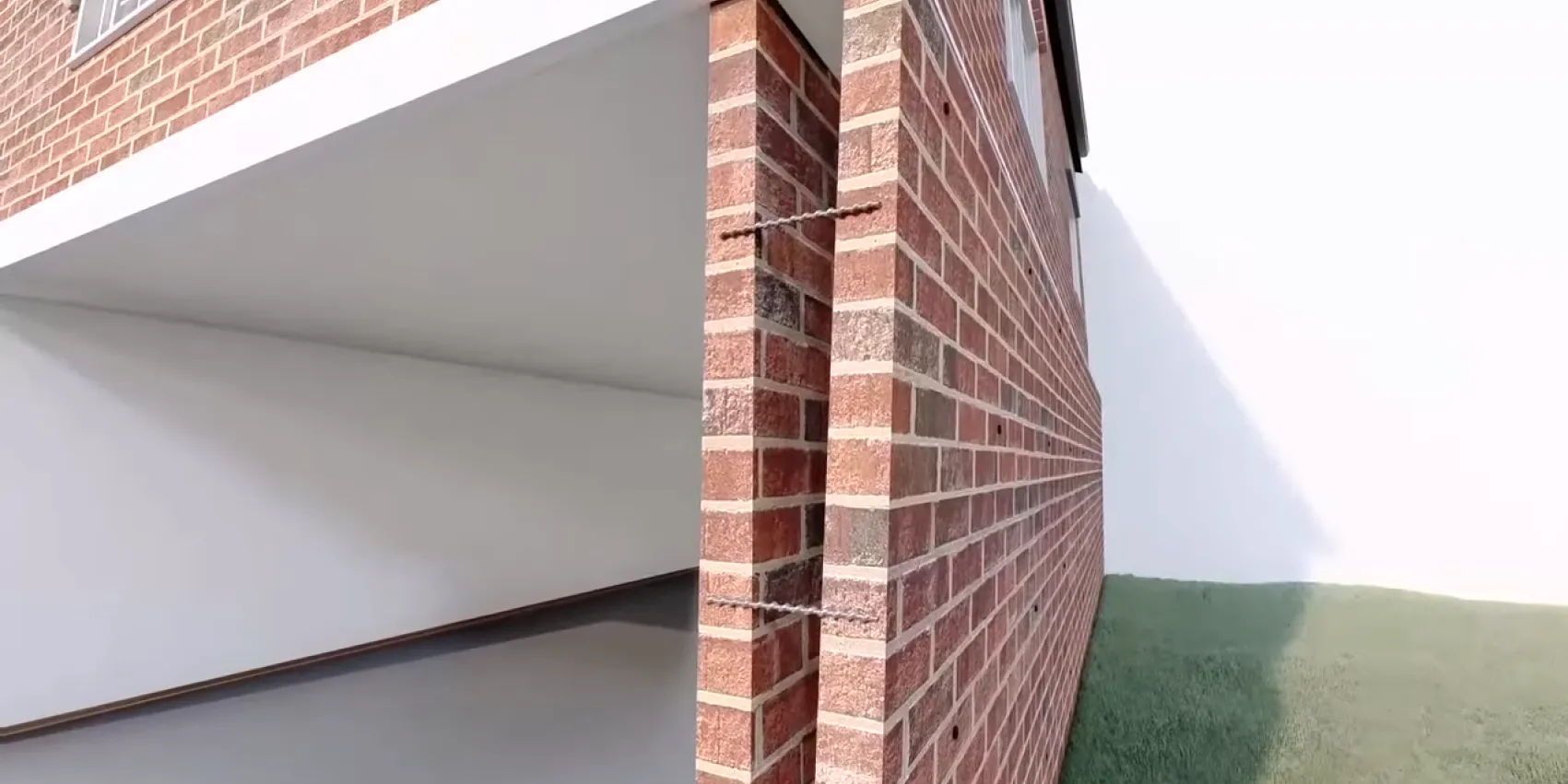

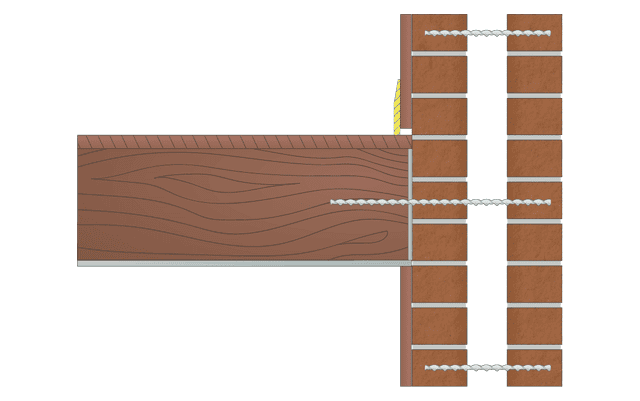

The HelicalBar™ T316 is a specialised remedial wall tie designed to correct cavity wall tie failures and resecure leaning and bulging masonry walls to internal supports, such as floor joists. With an 8mm diameter and advanced triple-blade design, the HelicalBar™ T316 can be easily inserted into small pilot holes, minimising visual and structural impact while making installation quick and straightforward.

Under load, the helical blades efficiently distribute forces along the tie’s length to maintain reliable connections. This makes them ideal in lintel repair, slab jacking stabilisation and wall crack stitching for a variety of building materials, including clay bricks, concrete and timber joists.

HelicalBar™ T316 technical data

HelicalBar™ T316
technical data

  • Material: 316 Austenitic Steel
  • Treatment Applicable to: All Types of Masonry Walls
  • Injection Hole Diameter: 5 mm
  • Visual Impact on Brickwork: Minimal
  • Application Focus: Reconnect Failed Cavity Walls and Redistribute Unstable Solid Walls to Internal Supports.
  • Corrosion Resistant: 50+ Years
  • Tensile Strength: 1200 N/mm2
  • Environmental Impact: None

Why HelicalBar™ T316 stands out

Why HelicalBar™ T316
stands out

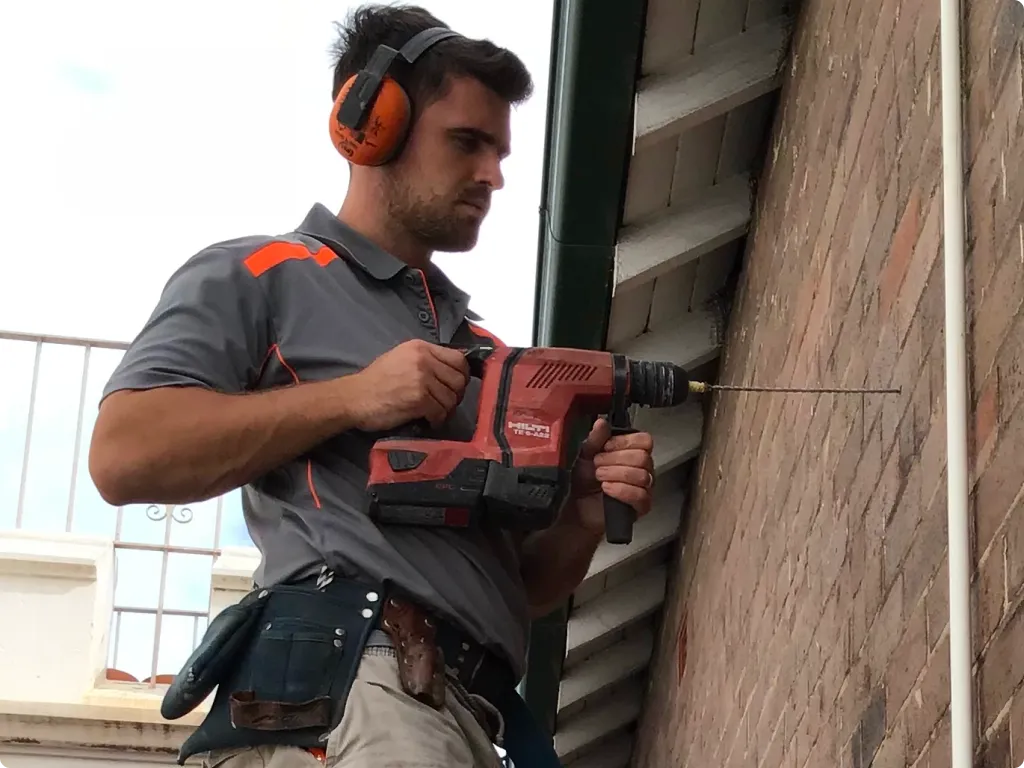

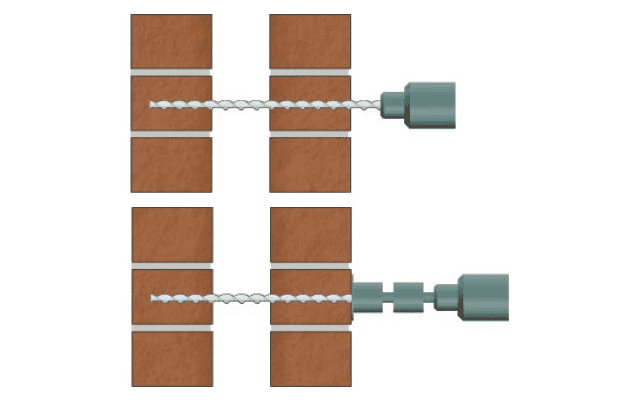

  • Minimally Invasive Installation: Uses small pilot holes to reduce impacts on the masonry, thus maintaining the integrity and appearance of the walls during installation.
  • Quick and Efficient: Features a streamlined installation process that saves time while ensuring effective wall reinforcement.
  • Even Load Distribution: The helical fins are designed to distribute forces uniformly across the length of the tie, enhancing wall stability and strength.
  • Marine-Grade Stainless Steel: Made from marine-grade 316 stainless steel, offering optimal corrosion resistance and long-lasting performance.

Comprehensive applications of HelicalBar™ T316

Comprehensive applications of HelicalBar™ T316

  • Solving Wall Tie Failure: Ideal for rectifying issues caused by corroded cavity ties, ensuring restored stability and integrity to the wall structure.
  • Reinstating Stability Post-Subsidence: Effectively used in stabilising walls that have been compromised due to subsidence, returning their structural integrity.
  • Enhancing Load-Bearing Capacity: Suitable for augmenting the load-bearing capacity of walls, particularly beneficial in older or weakened structures.

Detailed advantages For your home

  • Enhanced Structural Integrity: The HelicalBar™ T316 reinforces the stability of your home’s walls to ensure long-term structural safety.
  • Preservation of Property Aesthetics: A minimally invasive installation process maintains the original appearance of your home, avoiding large-scale alterations.
  • Increased Property Value: By effectively addressing and rectifying structural issues, HelicalBar™ T316 enhances your property’s value and appeal.

Detailed advantages For
your home

Safeguard your home from unstable, leaning walls

See what advantages HelicalBar™ T316 can bring to your home.

Safeguard your home from unstable, leaning walls

See what advantages HelicalBar™ T316 can bring to your home.
